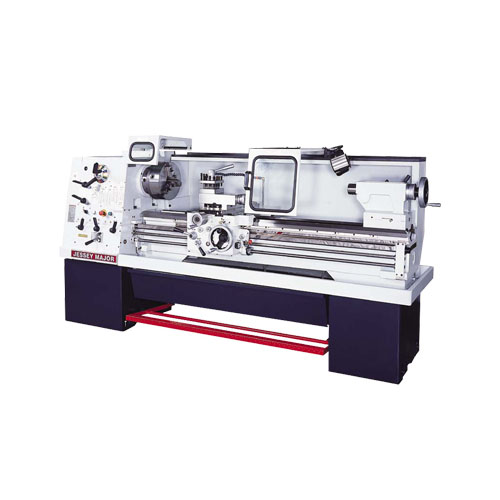

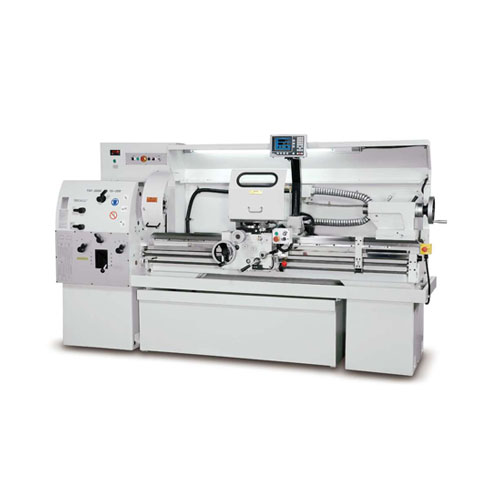

MAJOR系列

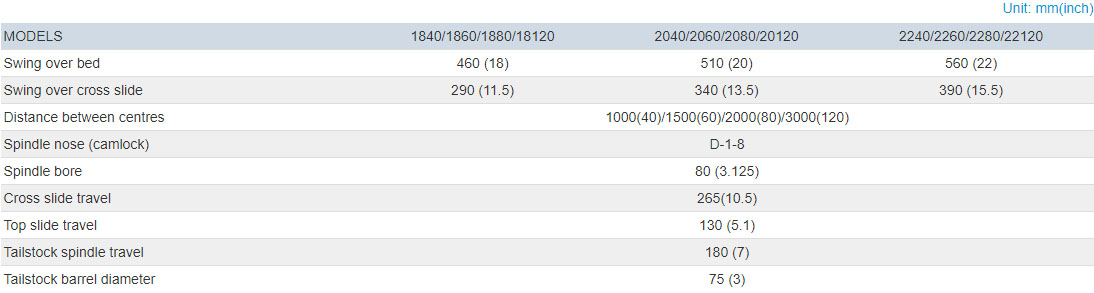

型號 ID：1840/1860/1880/18120、2040/2060/2080/20120、2240/2260/2280/22120

● D1-8 camlock spindle nose.
● 16-step spindle speed from 20-1600rpm.
● Optional variable-speed drive from 20-2000rpm in 3 variable ranges.
● 15HP (11.25kw) spindle motor.
● Swing over bed 460mm/510mm/560mm.
● Distance between center 1000mm/1500mm/2000mm/3000mm.
● Headstock gears with precision hardened and ground.
● Universal gearbox provides comperhensive range of metric, imperial M.P. and D.P.threading.
● Induction hardened & precision ground bed

Standard Equipment:
● Low voltage control
● Coolant system
● Mechanical multi-plate clutch
● Motor: 15HP
● Universal gearbox
● Backplate for 3-jaw chuck
● 4-way toolpost
● Threads indicators
● Centers & center sleeve
● Leveling blocks
● Service tools & toolbox
● Touch paints
● Instruction & parts manual

Optional Accessories:
● Variable speed
● 3-jaw scroll chuck
● 4-jaw independent chuck
● Face plate
● Steady rest
● Follow rest
● Rotating center
● Full length splash guard
● Halogen lamp
● Chuck safety guard
● Chip safety guard
● CE electrical system
● Leadscrew cover
● Turret type micrometer bed stop
● Taper turning attachment
● Quick change toolpost
● Rapid feed attachment for Z-axis movement
● Double-speed tailstock
● Magnetic brake system
● Chip trolley instead of chip pan, but without foot brake
